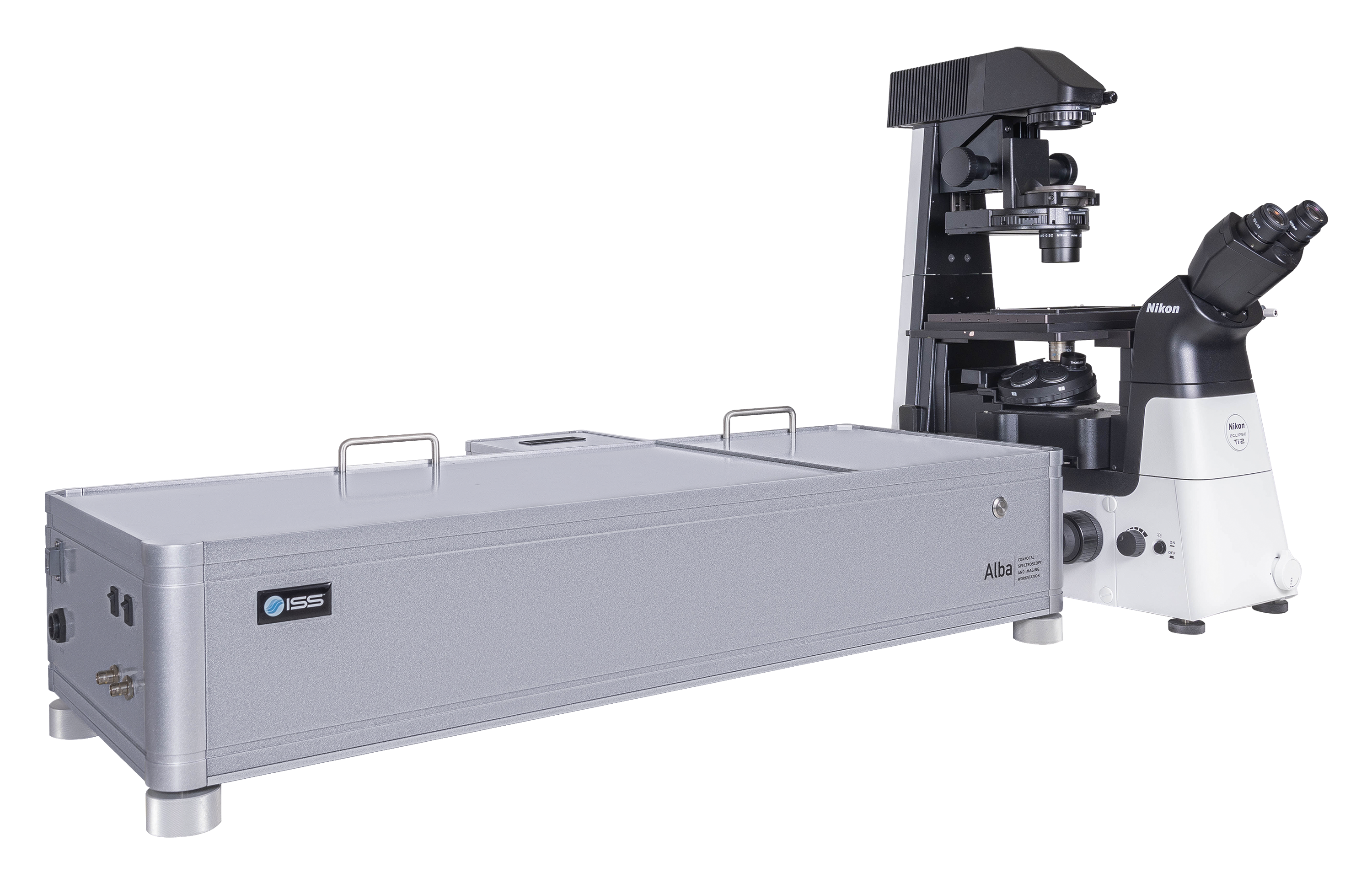

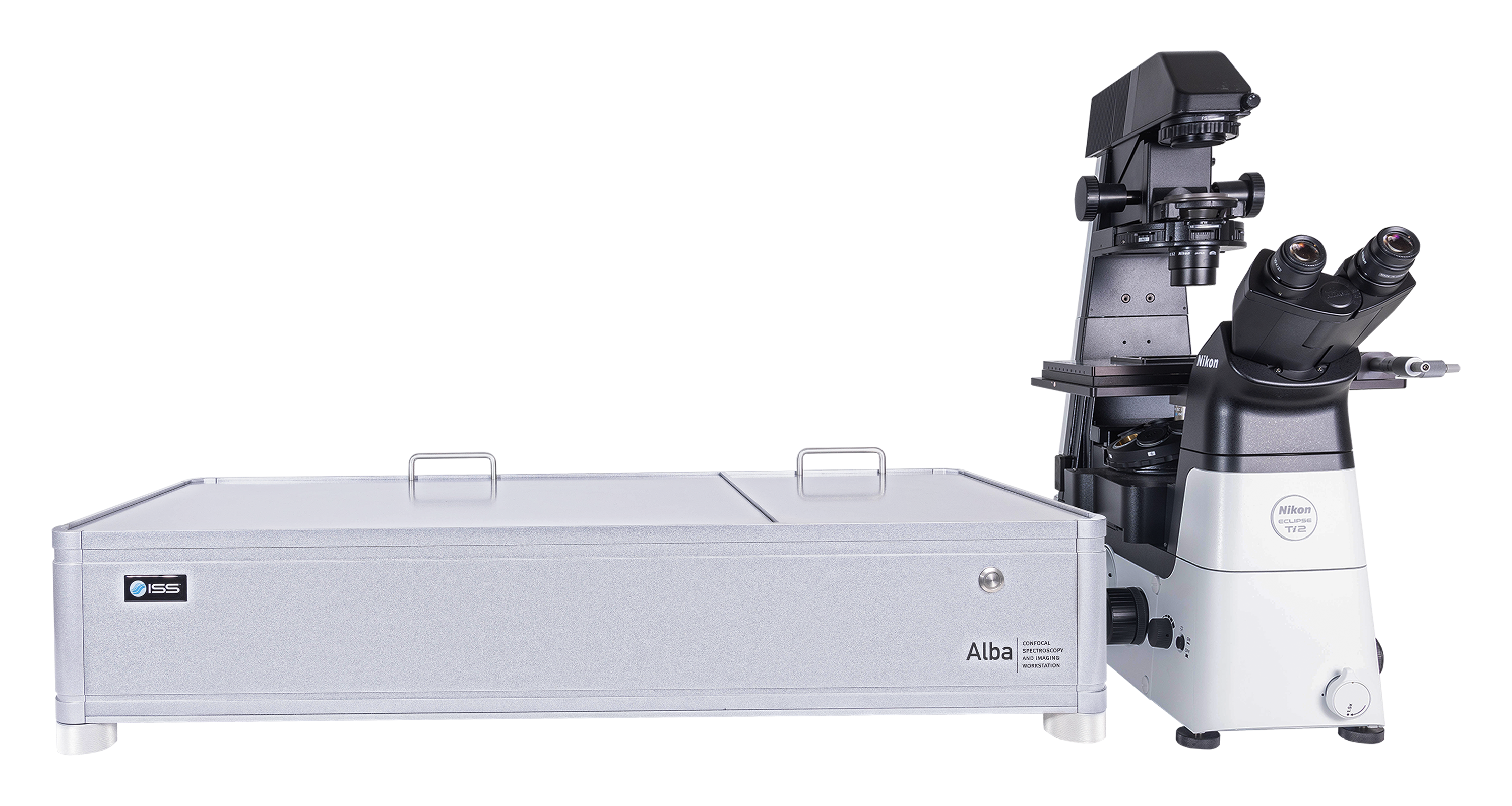

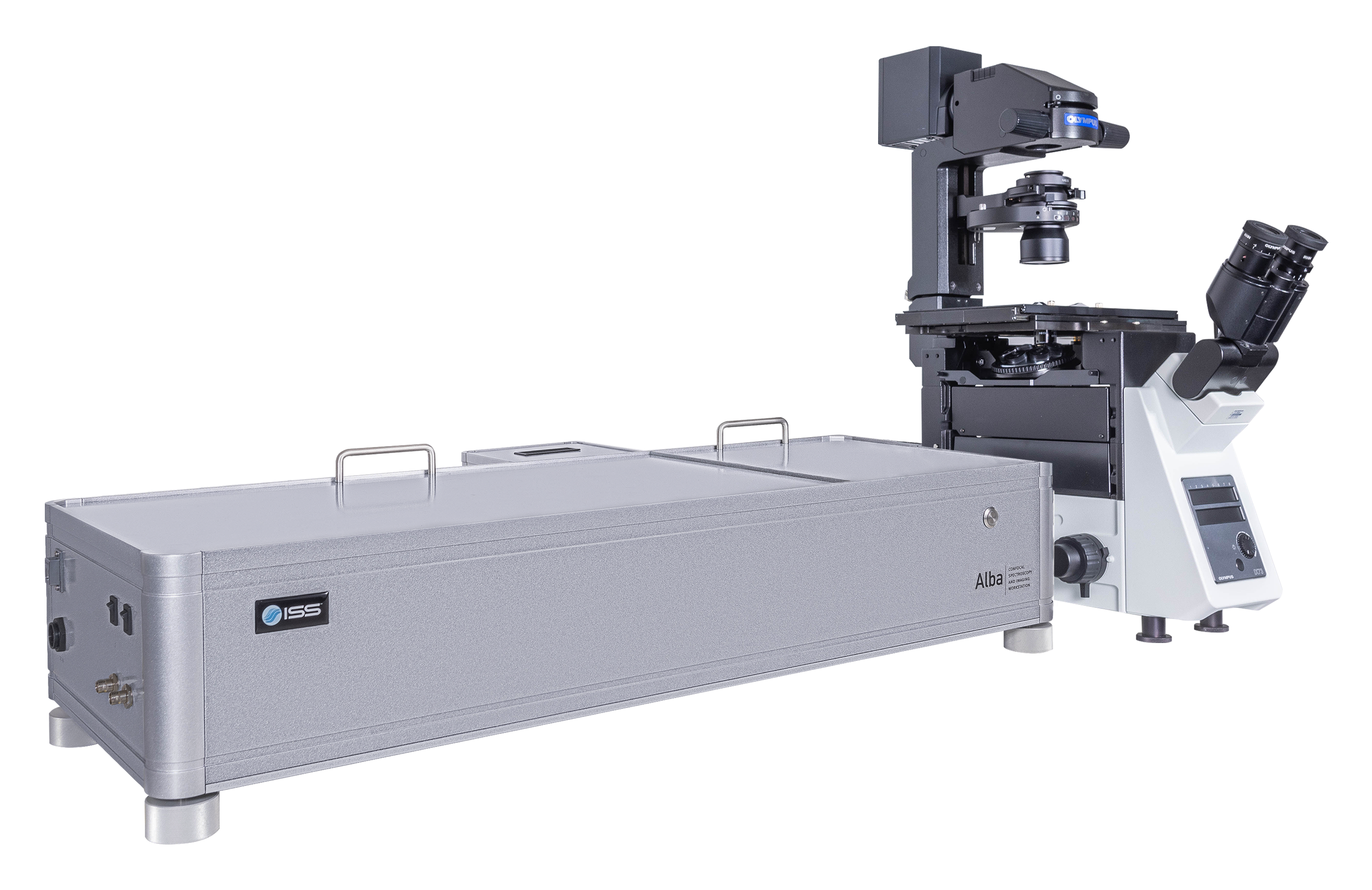

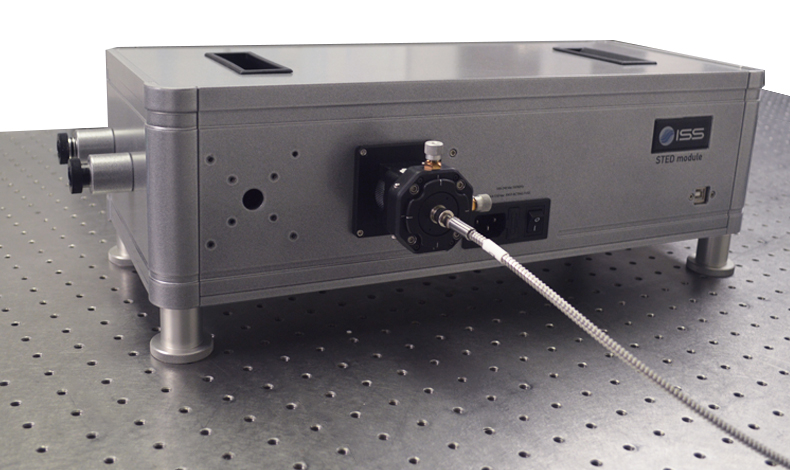

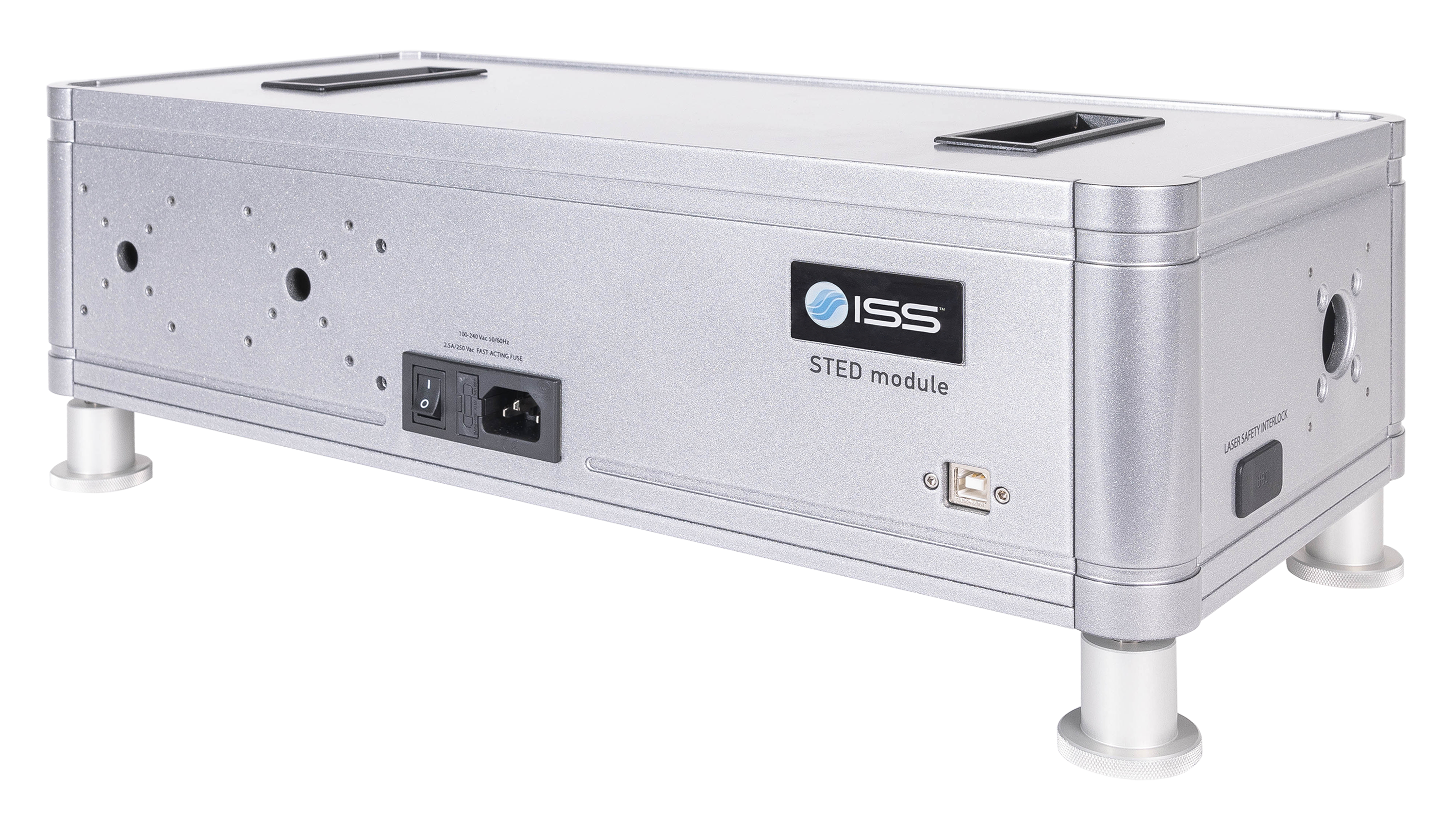

The instrument for quantitative cell biology at single-molecule detection.

Stimulated Emission Depletion (STED) is a powerful microscopy technique that allows for the observation of fluorescence structure with spatial resolution below the diffraction limit. The Alba-STED uses the pulsed excitation and pulsed depletion approach (pSTED) in combination with the digital frequency domain fluorescence lifetime imaging (FastFLIM) to record the time-resolved photons which allows for an increase in the image resolution and the separation of two labels with the same excitation wavelength.

Key Features of Alba-STED for FLIM/FFS:

  • pSTED (Pulsed excitation and pulsed STED)
  • FastFLIM for time-resolved pSTED acquisition
  • Improved image resolution using the phasor plot
  • Dual-label excitation
  • Fast image acquisition (5 frames/second at 256x256 pixels)
  • High dynamic range (signal up to 13 million counts/s)

Measurements for Alba-STED for FLIM/FFS

FFS Measurements
  • Fluorescence Correlation Spectroscopy (single- and cross-correlation)
  • Photon Counting Histogram (PCH)
  • FFS measurements at target XYZ locations in an image
  • FLCS, Fluorescence Lifetime Correlation Spectroscopy
  • Scanning FCS
  • Number & Brightness (N&B)
  • Raster Image Correlation Spectroscopy (RICS)
Single-point Module Measurements
  • Intensity
  • Polarization
  • Kinetics
  • Lifetime
Imaging Module Measurements (Single plan and z-stack)
  • Intensity
  • Polarization
  • Ratiometric
  • FLIM
FLIM images (digital frequency-domain) (single plane and z-stack)
  • Acquired in digital frequency-domain (DFD). The routine acquires simultaneously a FLIM image and a steady-state image.
FLIM images time-domain (single plane and z-stack)
  • Acquired in time-correlated single photon counting (TCSPC)
Superresolution
  • Particle tracking
  • Nanoimaging
Single Molecule Module
  • Burst Analysis
  • FRET and Correlation Methods
  • PIE-FRET Methods

Specifications for Alba-STED for FLIM/FFS

Instrument Features
  • Individual pinholes on each acquisition channel
  • Computer-controlled selection of the pinhole variable aperture
  • Computer-controlled positioning of the pinhole in the imaging plane
  • Single-photon or multi-photon excitation
  • Up to four channel data acquisition
  • Auxiliary port for camera
Acquisition and Analysis Software
STED laser Pulsed, 775 nmAverage output power: 1 W
Pulsewidth: about 600 ps
Repetition rate: 0-100 MHz; or Ext. CLK
Beam quality: M2 < 1.1, TEM00
Amplitude noise: < 4.0% rms
Excitation laser Pulsed, 640 nmPulsewidth (at medium power): 40-90 ps
Repetition rate: 20, 50, 80 MHz; or Ext. CLK
Power (at 50 MHz): up to 5 mW
Laser Launcher
  • Models for 3, 4, 6 laser diodes. Light is delivered to the microscope through a single-mode fiber optic.
FastFLIM
  • 4 separate input signal
  • Dynamic range: up to 13 million counts/s per channel
  • Lifetime range: from picosecond to second
Microscope
  • Inverted or Upright
Objectives
  • Air objectives with 20X, 40X, 60X magnification and 1.5-8.1 working distances
  • Oil immersion objectives, 1.4 NA and 60X (standard); other aperture available
  • Water immersion objectives,1.2 NA 60X (standard), with coverslip correction (for 0.15-0.18 coverslip); other apertures available
Stages
  • Large distance movement (100x100x10 mm)
  • Stepper motor-controlled XYZ stage
  • Micro-distance movements
  • XYZ piezo-controlled stage, 100x100x50 µm with 5 nm step resolution.
Sample Holders
  • Microwell plates
  • Petri dishes
  • Coverslip
Light Detectors
  • APD
  • GaAs PMT
Image acquisition FLIM acquisition: 5 frames/sec (256 x 256 pixels)
OS Requirements
  • Windows 10, 64-bit
Power Requirements
  • Universal power input: 110-240 V, 50/60 Hz, 400 VAC
Dimensions
  • 885 mm (L) x 600 mm (W) x 330 mm (H)
Weight
  • 40 kg

Schematic Diagram of Alba-STED for FLIM/FFS

Measurement Examples from Alba-STED for FLIM/FFS

Confocal (green) vs. pSTED (red) images of 60-nm fluorescent beads, acquired by FastFLIM

Confocal (left) vs. pSTED (right) images of the actin labeled with the SiR dye in fixed glia cells, acquired by FastFLIM.

Increasing the resolution of pSTED images using the Phasor Plot

Confocal images of 60nm fluorescence beads (left); pSTED images (middle); sharpening the pSTED image using a binary filter based on the phasor plots (right).

Separation of the locations of two labels using FastFLIM and the Phasor Plot

Dual labels can be separated using pSTED and FastFLIM. Atto 647N and Atto 655 were used as labels; they both are excited by the 640 nm laser. The two dyes are first separated using the phasor plots, and then assigned with two different false colors (Atto 647N - yellow, Atto 655 - purple) to produce the processed and merged pSTED image of the two labels.
